iMisff 7101 EM — Continuous Emissions Monitoring Solution (CEMS) integrates continuous measurement devices for mandatory environmental parameters regulated by government agencies. It transmits monitoring data online to the management center (Department of Natural Resources and Environment), supporting state environmental management efforts.
iMisff 7101 EM – Automatic, continuous exhaust gas monitoring solution that fully meets the requirements of Circular 10/2021/TT-BTNMT
Automatic Continuous Emission Monitoring Solution - iMisff 7101 (EM) Emission Monitoring
Brochure
Why is iMisff 7101 EM different?
All equipment is pre-installed by Viet An and integrated into a single monitoring cabinet. Emission duy nhất.
When delivered to the customer, the monitoring cabinet can be used immediately without calibrating each device.
Measurement results will be continuously transmitted to the customer's central control room via the IoT Platform - iLotusLand. Goods through IoT Platform - iLotusLand.
Monitoring parameters
Standard: low, temperature, pressure, residual O2, total dust, SO2, NOx and CO.
Extend: Depending on the type of production, scale, characteristics of waste sources and requirements of competent state agencies, authority from which to determine the parameters that need to be monitored.

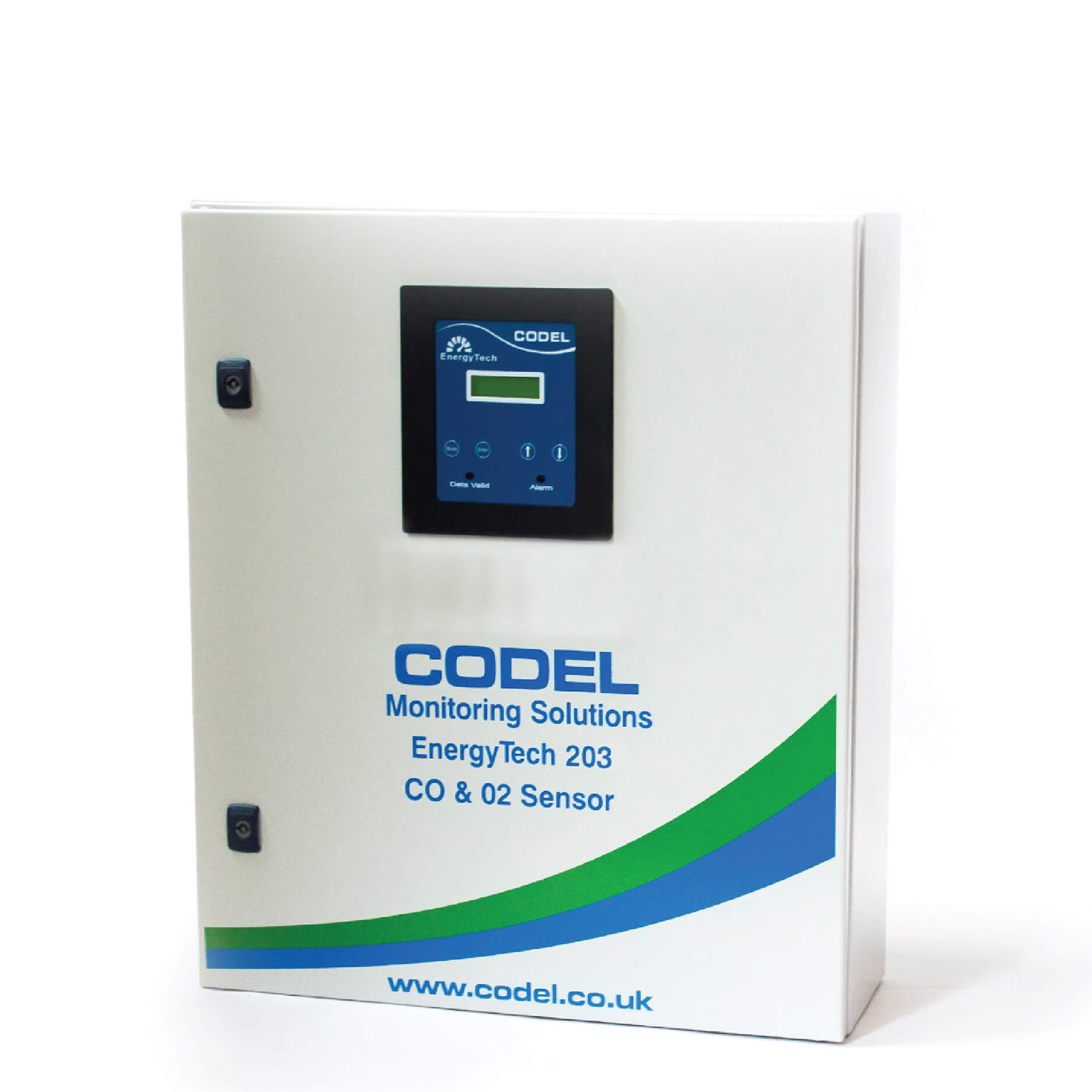

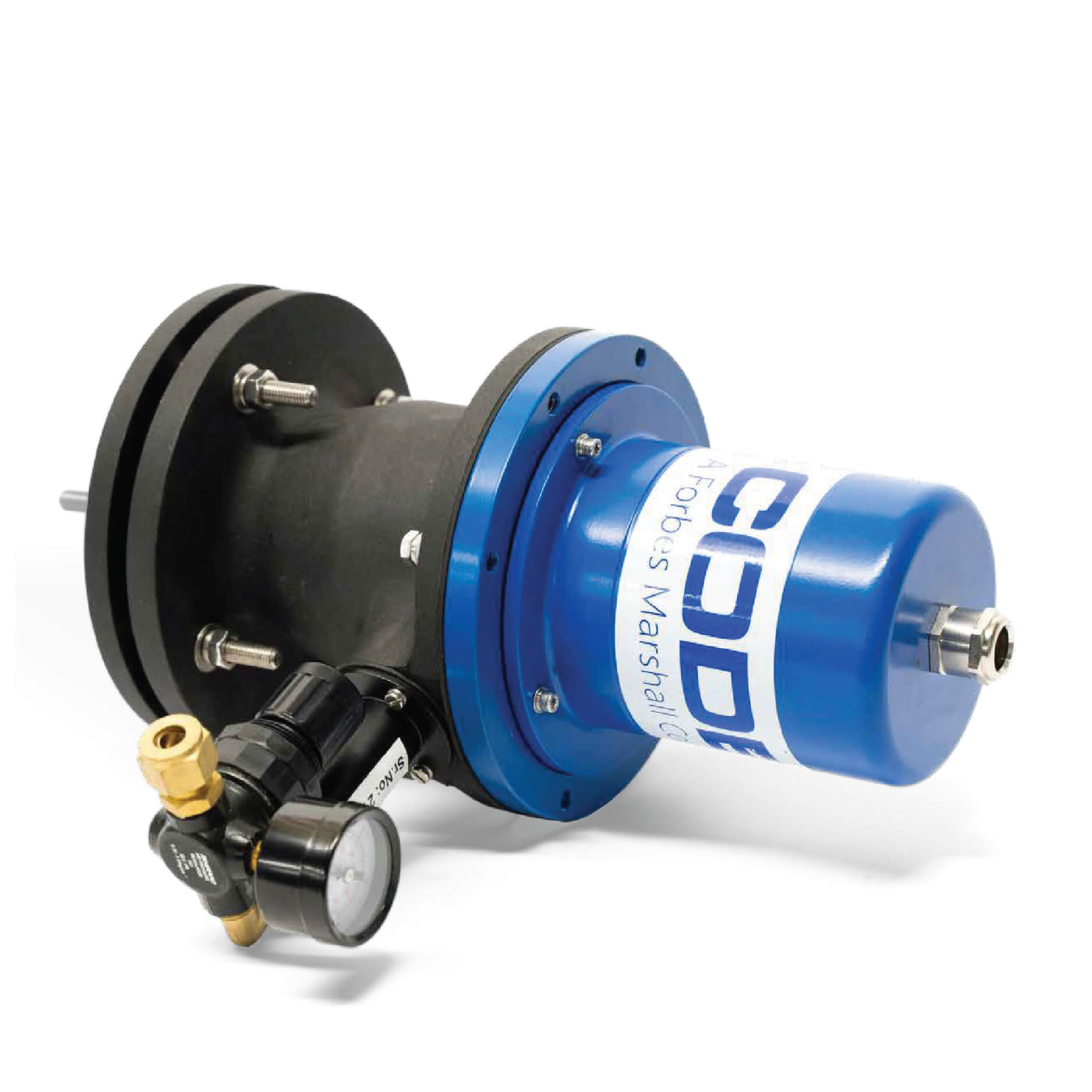

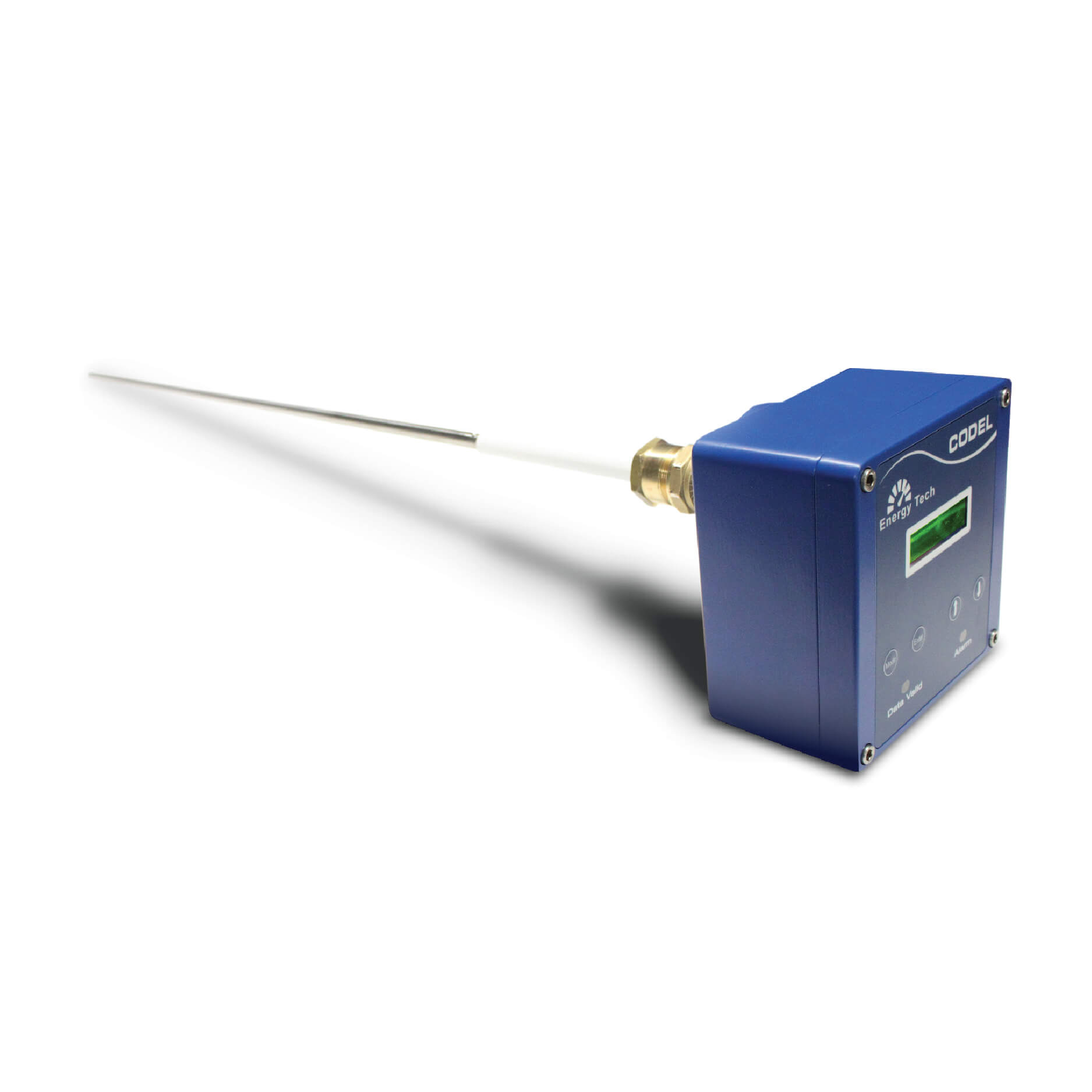

Primary devices
What indicators emissions monitoring?
Industrial emissions are waste in gas or vapour states arising from industrial production and service activities. Dust is small solid particles suspended in the air, usually particles with a diameter of fewer than 75 micrometres.
What indicators Exhaust gas is the process of measuring and analyzing the parameters of physical and chemical properties of exhaust gas, carried out by state environmental management agencies or business units and organizations.
Two main measurement methods are used to Emission monitoring
- Direct measurement (Insitu)Measurement equipment is installed directly on the chimney; no sampling system is needed.
- Indirect measurement (Extractive): The exhaust gas sample is extracted from the chimney body through the sample suction pipe and is guided along the sample pipe to the monitoring device.
Some industries that emit air pollution include: Construction materials; chemicals and fertilizers; textile and paper; Metallurgical; food; mechanical factories; Light industry factories...
Why must install an emission monitoring station?
Emission monitoring helps evaluate the efficiency of the production process, evaluate the exhaust treatment system and at the same time provide data to serve local environmental management.
Closely monitoring emissions helps businesses develop environmental status reports and support pollution control. From there, evaluate the compliance of production facilities with environmental emission standards.
According to Circular 10/2021/BTNMT regulating automatic and continuous exhaust gas monitoring stations, Business establishments and manufacturing plants of all types that generate emissions that pollute the air environment need to Perform automatic and continuous environmental monitoring
What indicators does emissions monitoring include?
- Emission environmental parameters Emission Fixed includes: flow, temperature, pressure, residual O2, total dust, SO2, NOX, CO
- Industry-specific parameters upon request.
Depending on the type of production, scale, characteristics of waste sources and requirements of competent state agencies, authority from which to determine the parameters that need to be monitored.
iMisff 7101 EM - Emission monitoring solution
As a comprehensive, integrated automatic and continuous emissions monitoring solution, it was developed and manufactured by Viet An.
iMisff 7101 EM - Emission monitoring solution of Viet An is integrated with measuring equipment from brands from EU/G7, with high accuracy, low maintenance and operating costs.
The quality of our equipment has been confirmed in hundreds of countries worldwide, giving customers absolute confidence when choosing us.
- Compact device
- Reasonable investment costs
- The equipment operates with high reliability and accuracy
- The system is designed to be flexible, meeting each customer's actual requirements
- Easily set up and monitor data through control screens
- All devices are integrated and installed into a single monitoring station
- Access remote monitoring via iLotusLand Platform
- The management software is extremely user-friendly, making tracking and monitoring easier
- Low maintenance and service costs
