Dissolved Oxygen Analyzer - AMI Oxysafe

Introduction to the AMI Oxysafe Dissolved Oxygen Monitoring System

AMI Oxysafe system is a specialized device designed for continuous and accurate measurement of dissolved oxygen (DO) in water. It is highly suitable for quality control in both drinking water and wastewater applications..

Details of the AMI Oxysafe System:

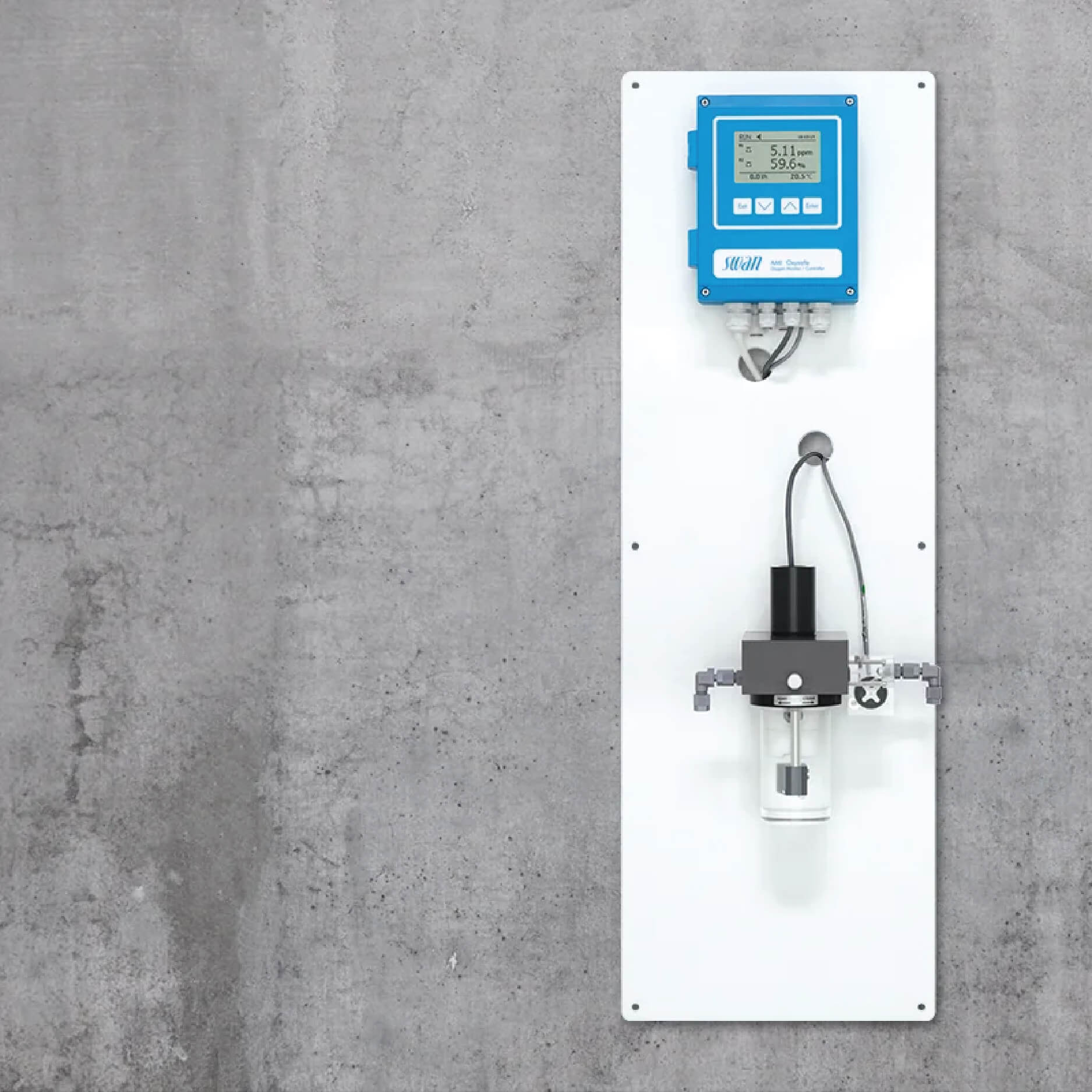

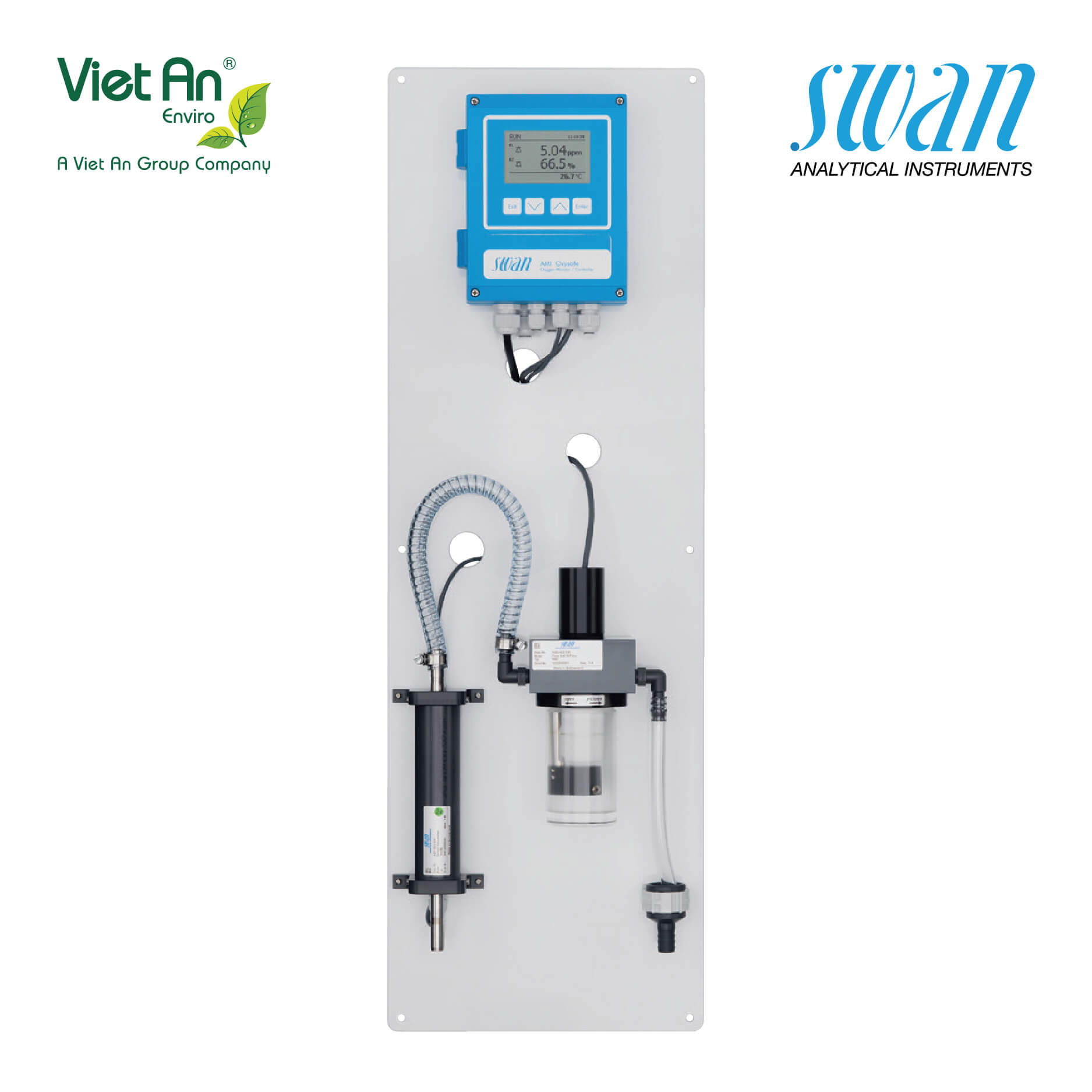

The AMI Oxysafe system is fully assembled on a panel, including:

• AMI Oxysafe Transmitter: Housed in a robust aluminum enclosure rated IP66 (completely dust-tight and resistant to strong water jets).
• M-Flow M40 Flow Cell: Ensures stable water sample flow through the sensor.
• Factory-Tested and Ready-to-Use: The entire system is pre-tested and calibrated by the manufacturer, ready for immediate use upon installation.

Compatible Devices and Options:

• Swansensor Oxysafe 1000: This sensor includes an integrated Pt1000 temperature sensor for precise sample temperature measurement.
• Optional Swansensor deltaT: Can be added to detect water flow.

Technical Specifications:

• Measurement Range:
  • 0 – 20 ppm O2 (at 25°C) – dissolved oxygen in parts per million.
  • Or 0 – 200% saturation..
• Automatic Air Pressure Compensation: Ensures accurate results regardless of atmospheric pressure.
• Automatic Temperature Compensation: Adjusts results based on changes in sample water temperature.
• Simultaneous Multi-Parameter Measurement: Capable of measuring dissolved oxygen concentration, sample temperature, and sample flow rate concurrently.
• Large Backlit LCD Display: Clearly displays all measured values (dissolved oxygen, temperature, flow rate) and the device’s operational status.
• User-Friendly Menu: Simple menu design available in English, German, French, and Spanish, allowing easy configuration of all parameters via the keypad.
• Signal Outputs: Features two current outputs (0/4 – 20 mA) for measurement signals (with an optional third output).
• Event and Calibration Data Logging: The device can record significant operational events and electronic calibration data.

The AMI Oxysafe is a comprehensive and reliable solution for monitoring dissolved oxygen, enabling efficient and straightforward water quality control.

Việt An Enviro is proud to be the official distributor of SWANequipment in Vietnam. Contact us for professional consultation.
