Ozone Analyzer - AMI Codes-II O3

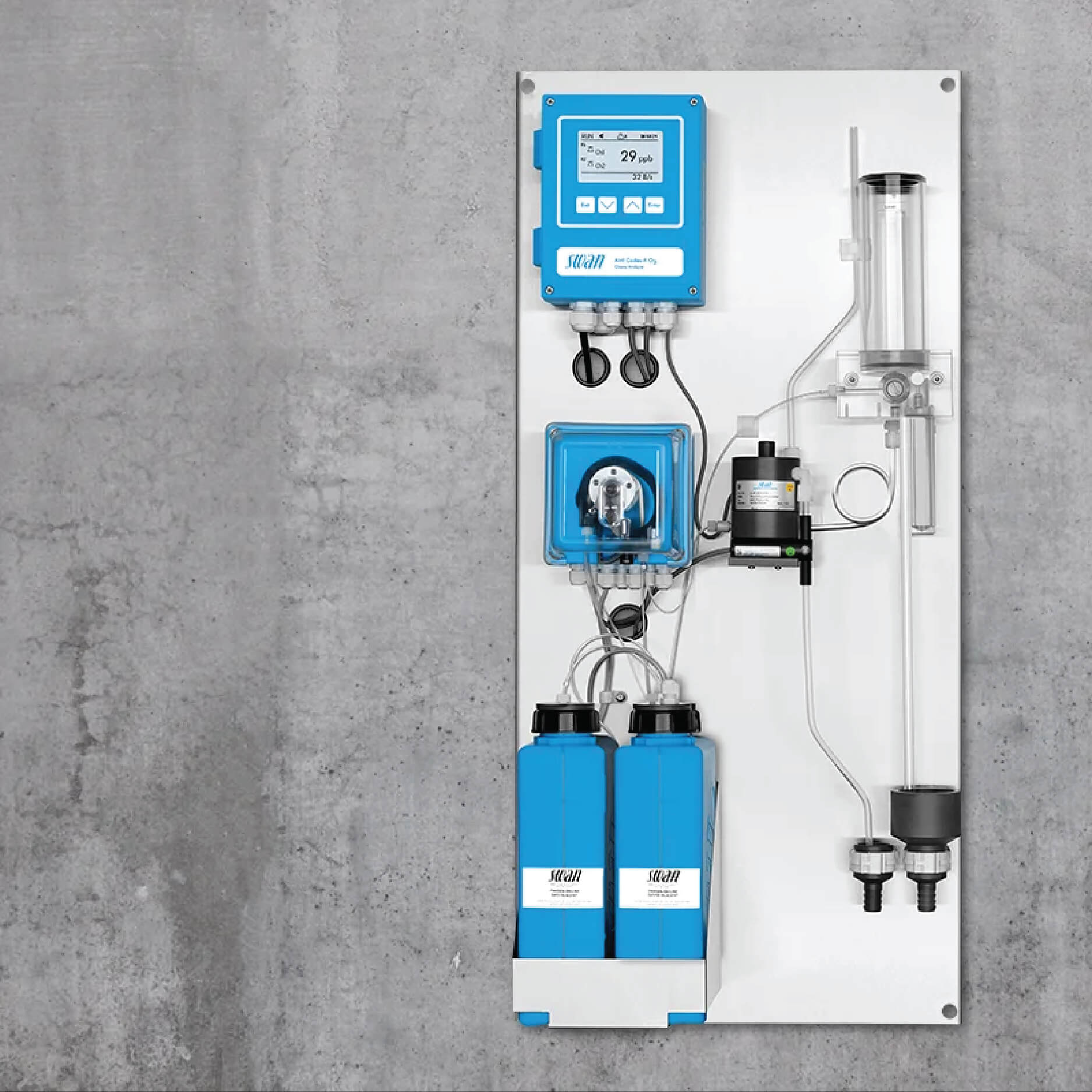

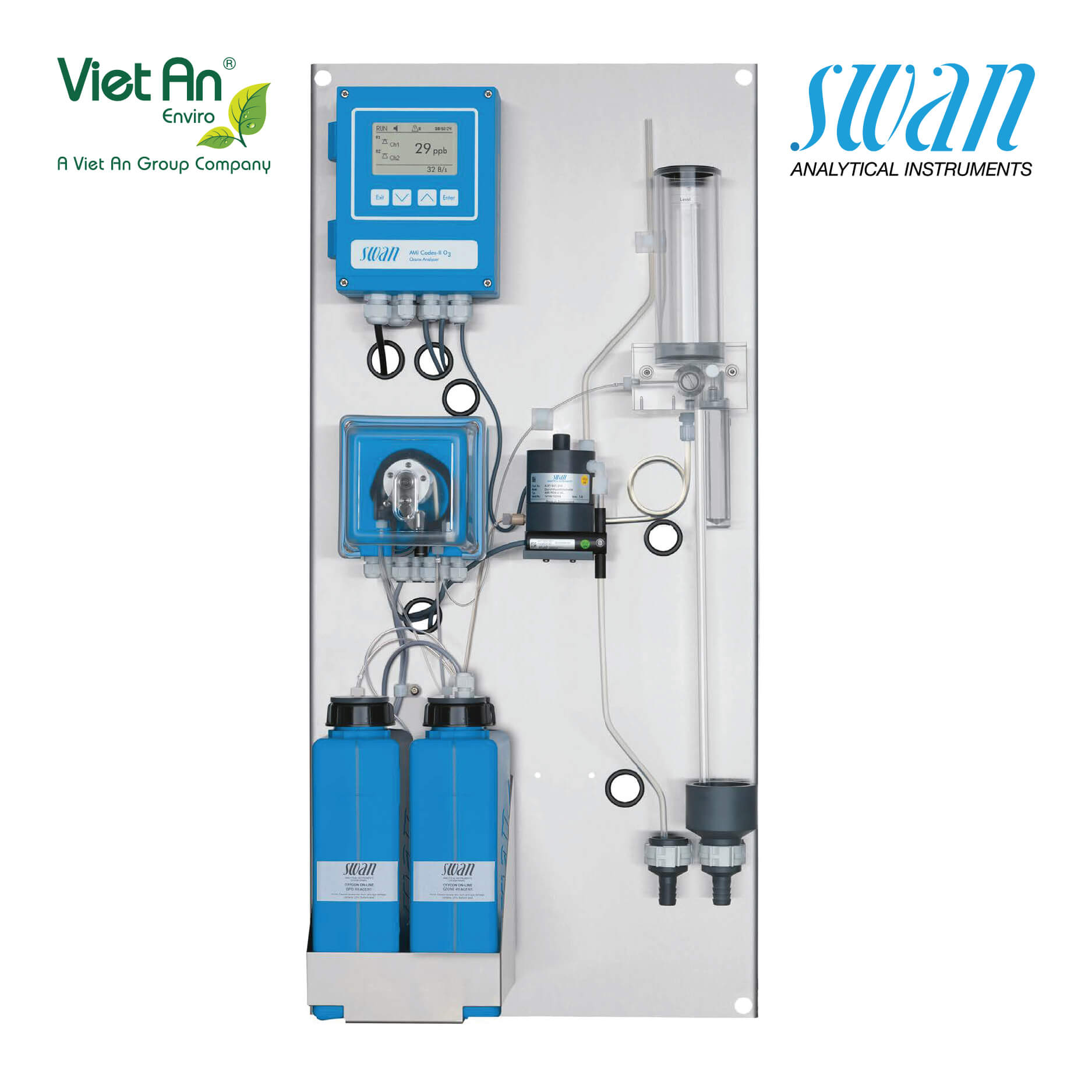

Introduction to the AMI Codes-II O3 Ozone Monitoring System

The AMI Codes-II O3 is a comprehensive monitoring system specifically designed for automated and continuous measurement of ozone concentrations in water. This device is particularly suitable for applications in the pharmaceutical industry and other industries requiring high-purity water..

System Details:

• Continuous Online Ozone Measurement: The device operates using the DPD colorimetric method (per DIN 38404-3)for real-time, continuous ozone detection.
• Measurement Range: From 0 to 500 ppb (parts per billion)..
• Complete System: Includes all necessary components: measurement and control electronics, photometer, flow indicator, reaction chamber, reagent dosing system, and reagent containers.
• Flexible Connectivity: Can connect to all standard disinfection dosing devices via relay or analog output signals. The device supports simultaneous operation of two independent controllers.
• Automatic Dosing Interruption: Disinfectant dosing can be automatically stopped via an external signal when required.
• Intelligent Alerts: Displays warnings and activates alarm relays when measured values reach user-defined critical limits.
• Automatic Monitoring of Key Functions: Continuously and automatically checks critical functions, such as photometer condition (contamination), sample flow, and reagent levels.Continuously and automatically checks critical functions, such as photometer condition (contamination), sample flow, and reagent levels.
• Large Backlit LCD Display: Simultaneously shows all measured values and status information for easy monitoring.
• Ready-to-Operate:Ready-to-Operate: Factory-tested and ready for immediate installation and operation.
• Pharmaceutical-Specific Features: Includes features such as Audit Trail, Performance Verification, and a Validation Package, meeting stringent pharmaceutical industry requirements.

Việt An Enviro is proud to be the official distributor of SWANequipment in Vietnam. Contact us for professional consultation.
